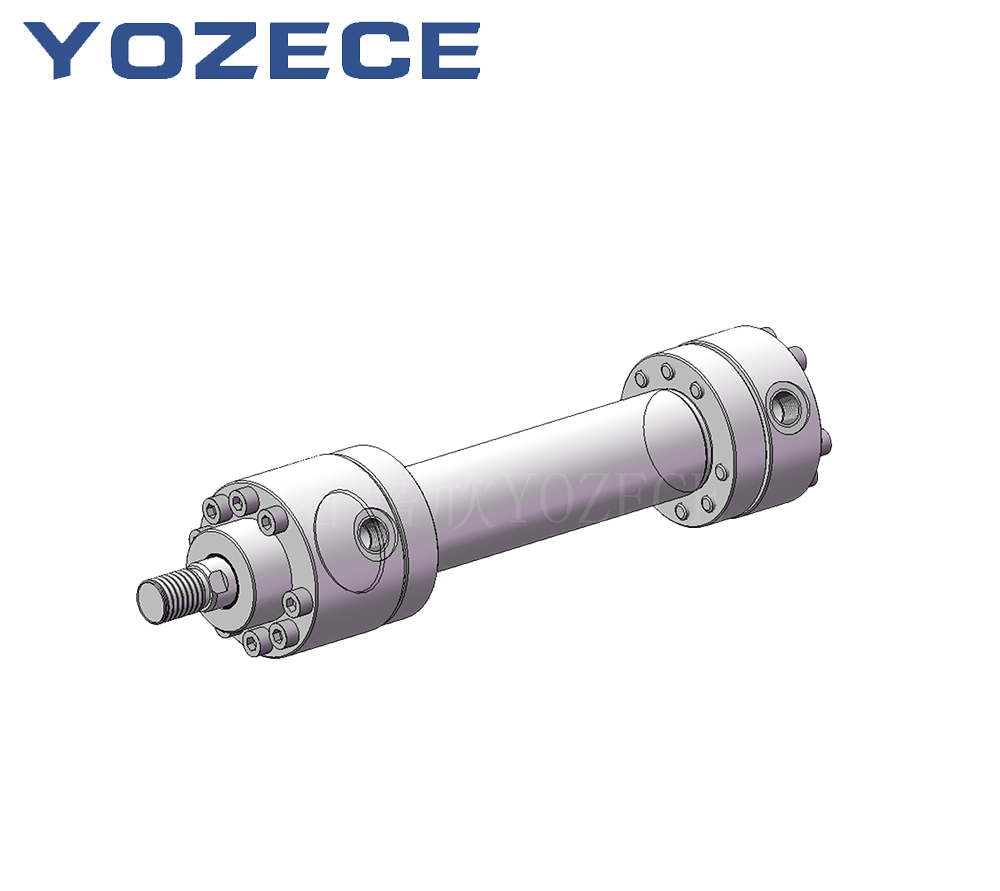

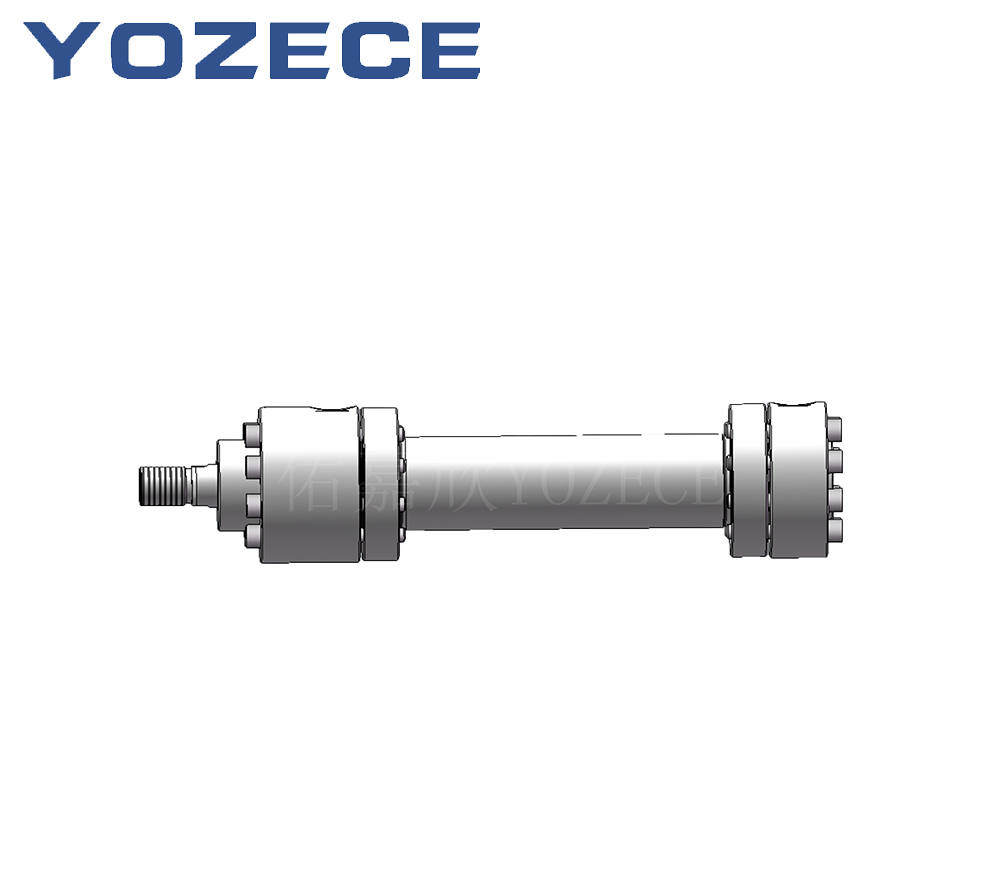

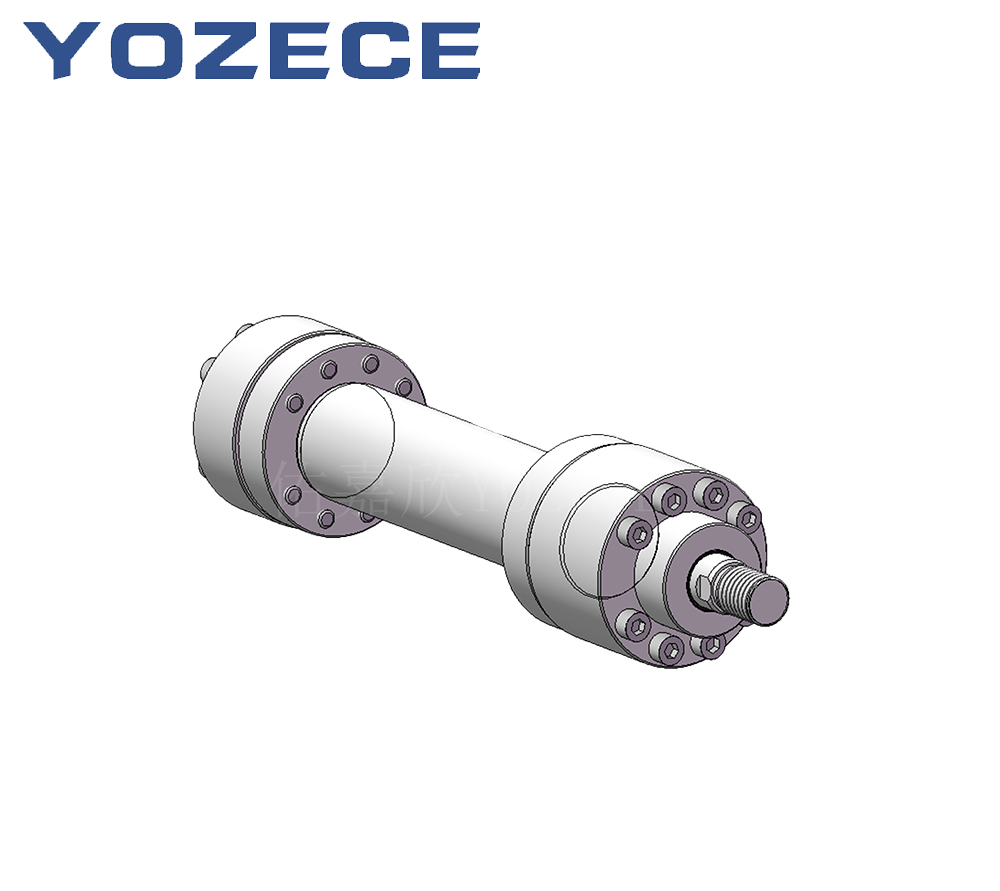

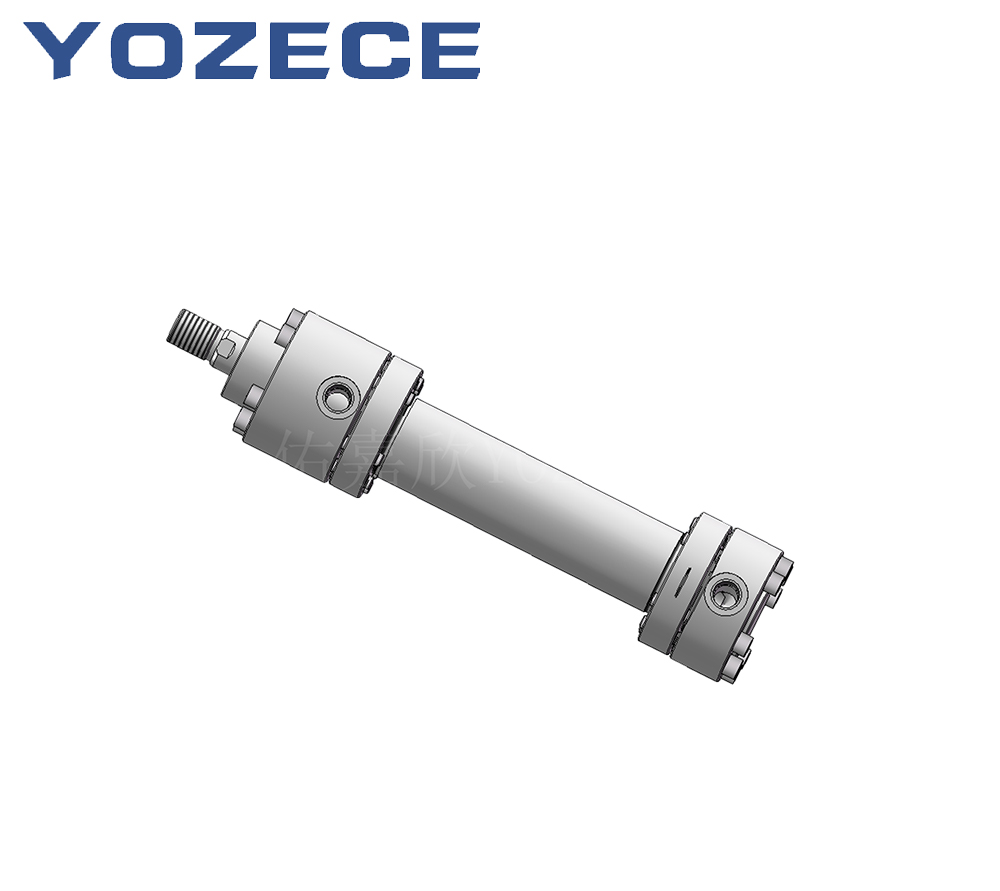

The HSG-series circular hydraulic cylinder is a single-acting or double-acting hydraulic cylinder.
It features various installation and connection methods and can be equipped with a buffer device.
It is suitable for construction machinery, lifting and transportation machinery, marine machinery, metallurgical and mining machinery, automated stamping machinery, and other hydraulic systems.
| Hydraulic Cylinder Model | MPG | ||||
| Inner Diameter | Φ50 | Φ63 | Φ80 | Φ125 | Φ150 |
| Shaft Diameter | Φ20 | Φ30 | Φ35 | Φ70 | Φ110 |
| Stroke (Unit: mm) | 50，100，150，200，1000 | ||||
| Mounting Distance (Unit: mm) | |||||
| Mounting Type | Basic Type, CA Single-Lug Swing Mount, TC Rubber Bushing Swing Mount, LB-Type Foot Mount, FA Circular Flange Plate | ||||
| Shaft End Fittings | None, Y-Joint, Y1 Y-Joint with Bearing, I-Joint, I1 I-Joint with Bearing | ||||
The HSG-series circular hydraulic cylinder is a single-acting or double-acting hydraulic cylinder.
It features various installation and connection methods and can be equipped with a buffer device.
It is suitable for construction machinery, lifting and transportation machinery, marine machinery, metallurgical and mining machinery, automated stamping machinery, and other hydraulic systems.
